INDUSTRIAL EFFLUENT
TREATMENT PLANTS (ETP)

Empowering industries with sustainable, high-performance Wastewater Solutions. From compact **10 KLD - 50 KLD** plants to massive high-capacity **120 KLD, 250 KLD up to 5 MLD (Million Liters/Day)** custom systems.

Our Plant Range Send Capacity Enquiry
Global Solutions

Capacity Up to 5 MLD

Motley Group is a powerhouse in wastewater treatment. We design, manufacture, and erect **10 KLD, 20 KLD, 50 KLD, 120 KLD, 250 KLD to 5 MLD** mega installations that meet strict environmental regulations & ensure Zero Liquid Discharge (ZLD).

10 KLD - 5 MLD Wide Capacity Range
Custom Specs Engineered to Order
Industrial Knowledge

Briefly, What is an ETP?

An Effluent Treatment Plant (ETP) is a specialized industrial wastewater treatment system designed to treat and purify highly contaminated industrial wastewater (known as effluent) before it is discharged back into the environment or reused within the factory.

Industrial effluents contain hazardous pollutants, including heavy metals, oils, greases, toxic chemicals, high BOD (Biological Oxygen Demand), and high COD (Chemical Oxygen Demand). Without an ETP, discharging this untreated water severely destroys natural water resources, soil, and public health, leading to huge legal penalties.

Key Objective Transform complex toxic wastewater into compliant, reusable, or safely dischargeable water.

Why Do Industries Need an ETP?

Implementing an Effluent Treatment Plant isn't just about compliance; it's a vital operation for modern-day industrial efficiency and planetary care.

Regulatory Compliance

Meet stringet state and central pollution control board (CPCB) standards to prevent closures and avoid fines.

Resource Recovery & Reuse

Recycle up to 95% of industrial water back into factory processes, significantly saving freshwater costs.

Brand Value & Safety

Create an eco-friendly and socially responsible brand while protecting your machinery from corroding due to bad water.

How ETP Processes Wastewater?

An ETP converts raw, harmful effluent into clean water through 4 standard, highly engineered processing stages:

1

Stage 01: Primary

Physical Treatment: Screeners filter out large debris like plastic, cloth, and stones. An oil and grease trap removes floating lipids. It then enters an Equalization and Neutralization Tank to balance erratic chemical loads and pH.

Initial Screening & pH Balance
2

Stage 02: Secondary

Biological Treatment: Focuses on removing dissolved organic matters using microbes and oxygen in Aeration Tanks (MBBR, SBR, or ASP). Microorganisms naturally digest organic pollutants, forming sludge that settles in Clarifier tanks.

BOD & COD Biodegradation
3

Stage 03: Tertiary

Chemical & Physical Filtration: Fine particles and microbes are killed or removed via disinfection (Chlorination/Ozone) and passed through high-grade Pressure Sand Filters (PSF) and Activated Carbon Filters (ACF).

Odor, Color & Microbe Removal
4

Stage 04: Advanced (ZLD)

Resource Recovery: Water goes through membrane filtrations (Ultrafiltration, Reverse Osmosis (RO)), ending at Multi-Effect Evaporators (MEE) to extract absolutely pure water for factory reuse, leaving zero liquid waste.

RO, UF & Zero Liquid Discharge

Our Popular ETP Range

Explore our robust, pre-engineered, and high-quality Effluent Treatment Plants designed for diverse operational footprints, scaling up to massive custom plants.

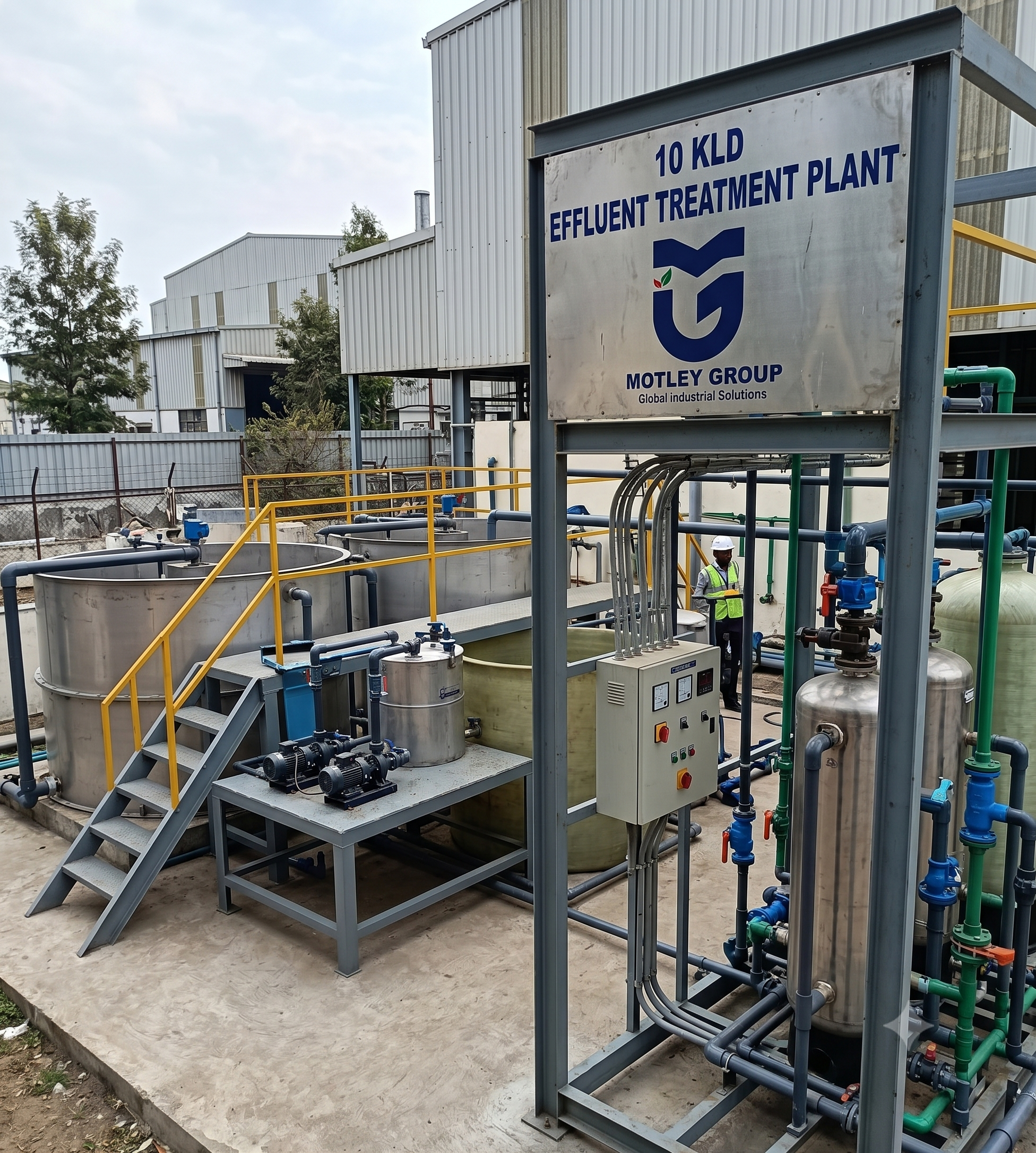

10 KLD Compact ETP
Skid-Mounted

10 KLD Compact ETP

Ideal for small-scale operations, highly space-saving & skid-mounted for effortless mobility and seamless daily operations.

  • Modular Plug & Play
  • Commercial & Small Ind.
  • Low Operational Cost
Enquire Now

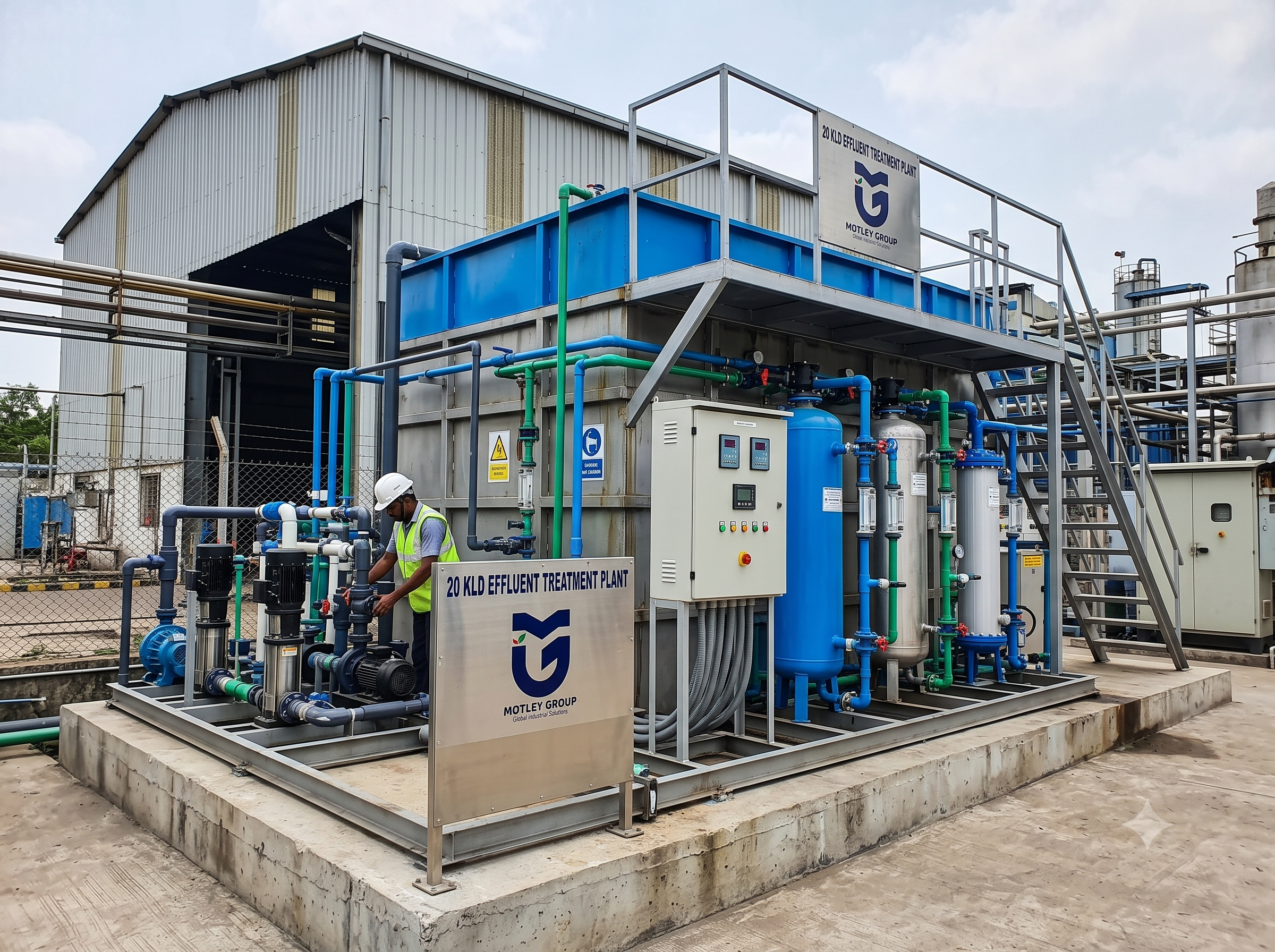

20 KLD Packaged ETP
Standard Packaged

20 KLD Packaged ETP

Robust, modern skid-mounted design using advanced filtration like Multi-grade filters & Carbon beds. Best for medium complexes.

  • Advanced Filtration
  • Pre-tested and Skid Mounted
  • Optimal COD/BOD Removal
Enquire Now

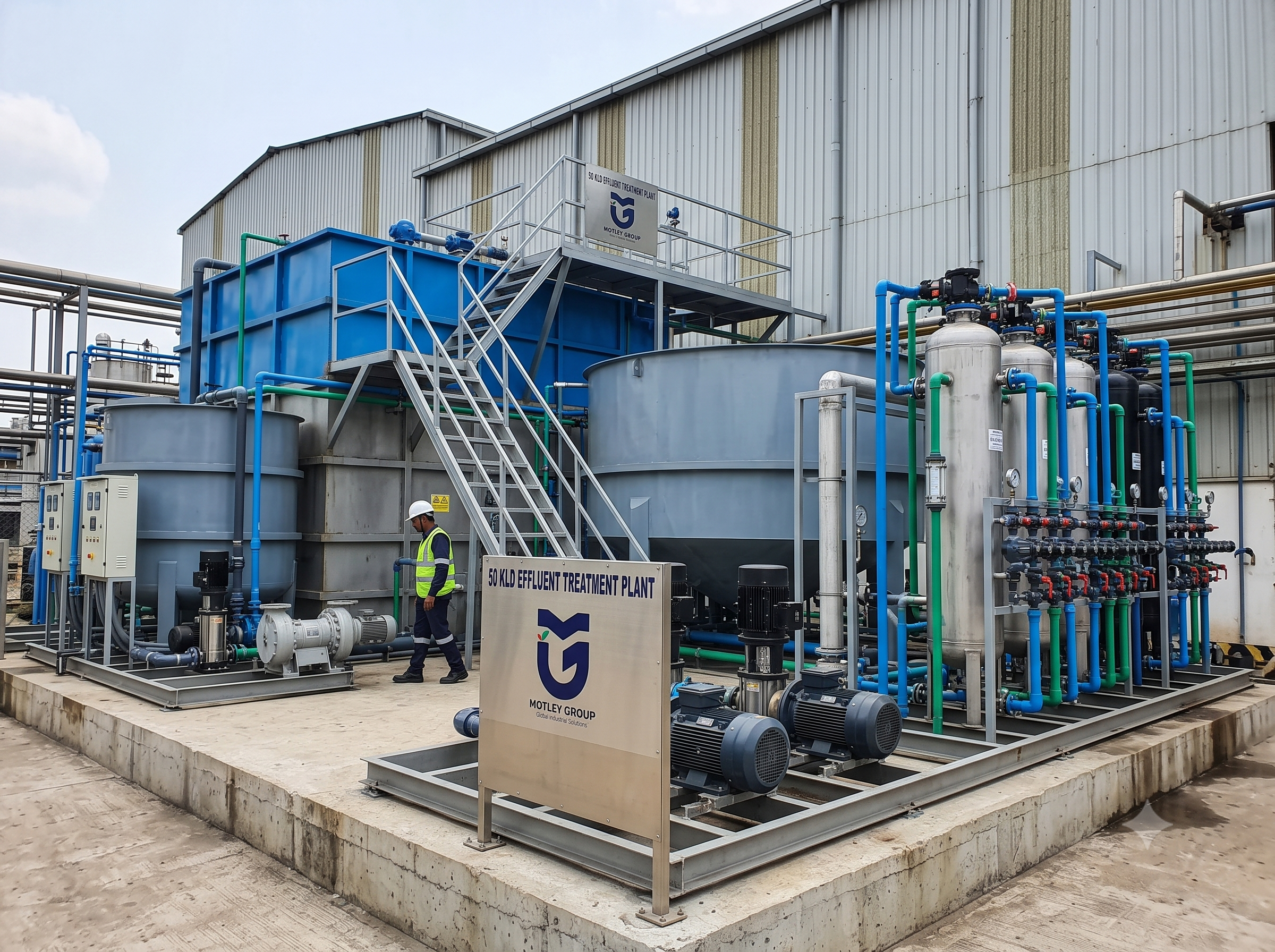

50 KLD Industrial ETP
Medium Capacity

50 KLD Industrial ETP

Heavy-duty, high capacity wastewater treatment system engineered for medium to large enterprises with intensive discharge needs.

  • High volume capacity handling
  • Biological Treatment (MBBR/SBR)
  • Durable & Fully Compliant
Enquire Now
120 KLD - 5 MLD ETP Projects
Mega & Custom Scale

120KLD - 5MLD & Custom

Huge scale environmental infrastructures spanning 120 KLD, 250 KLD to massive 5 MLD (Million Liters/Day) custom engineered to your layout.

  • High-end industrial output
  • Tailored ZLD / RO Technology
  • End-to-End Civil & Erection
Request Custom Layout
A Trusted Lifecycle Partner

How We Give Solutions

From conceptual design to continuous on-site maintenance, Motley Group ensures zero downtime and 100% regulatory compliance for your ETP project.

#01

Consultation & Sample Testing

We analyze your raw waste water characteristics in our advanced laboratories, evaluating BOD, COD, and chemical profiles to formulate the precise recipe.

#02

Engineering & Custom Design

Our engineering team maps CAD drawings and 3D schematics tailored exactly to your factories' volumetric demand (10 KLD to 5 MLD) & on-premises layout.

#03

Fabrication & Assembly

We fabricate modular skids, high-strength filters, reactors, electrical panels, and tanks at our facilities with precise, multi-layered quality checkups.

#04

Erection & O&M Support

Post commissioning and pollution certification help, we take over operations & AMC (Annual Maintenance) ensuring you get uninterrupted performance.

Industries We Serve

Providing customized, robust effluent treatment solutions across several specialized industrial domains.

Textile & Apparel

Pharmaceutical

Chemical & Petrochemical

Food & Beverage

Automobile

Paper & Pulp

Leather & Tanneries

Healthcare & Hospitals

Power & Energy

FMCG & Cosmetics

Distilleries & Sugar

Infrastructure & SEZs
